From the heart of Silicon Valley, MachiningPartner is your strategic sourcing partner for all manufacturing needs for the semiconductor industry and thermal control systems companies. We have a deep understanding of the semiconductor manufacturing process and the specific requirements of our customers. We offer a wide range of products and services, including:

• Semiconductor heaters and components
• Thermal control systems
• Manufacturing equipment
• Engineering and design services
• Testing and validation services

We are committed to providing our customers with the highest quality products and services, and we are always looking for new ways to improve our offerings. We are proud to count some of the world’s best-known semiconductor companies among our customers, including Applied Materials, LAM Research, Novellus, Coherent, ASM America, ASL, and ASE Technology.

If you are looking for a reliable and experienced supplier of semiconductor manufacturing products and services, then MachiningPartner is the right choice for you. Contact us today to learn more about how we can help you achieve your manufacturing goals.

MachiningPartner: Decades of Experience in Semiconductor Heater Manufacturing

MachiningPartner and associates have been manufacturing industrial heaters for the semiconductor industry and thermal control systems companies for decades. We have a deep understanding of the specific requirements of semiconductor heaters, and we offer a wide range of products and services to meet the needs of our customers.

Our extensive supply chain partnerships and vertical integration have allowed us to become a trusted supplier of semiconductor vacuum thermal designs, high temperature uniformity heaters, aluminum pedestal heaters, high temperature platen heaters, stainless steel brazed heaters, aluminum platen heaters, in-chamber platen and other pedestal heaters and platen heaters. We also distribute equipment used in manufacturing processes like transistors, memory devices, leak detection equipment, microprocessors, crystal silicon photovoltaic (PV) cells, and thin film PV cells.

We are proud to count some of the world’s best-known semiconductor companies among our customers, including Applied Materials, LAM Research, Novellus, Coherent, ASM America, ASL, and ASE Technology. We are committed to providing our customers with the highest quality products and services, and we are always looking for new ways to improve our offerings.

If you are looking for a reliable and experienced supplier of semiconductor heaters, then MachiningPartner is the right choice for you. Contact us today to learn more about our products and services.

Here are some of the benefits of working with MachiningPartner:

• We have a deep understanding of the semiconductor manufacturing process and the specific requirements of semiconductor heaters.
• We offer a wide range of products and services to meet the needs of our customers.
• Our extensive supply chain partnerships and vertical integration allow us to provide our customers with the highest quality products and services.
• We are committed to continuous improvement and are always looking for new ways to improve our offerings.

We would be honored to be your partner in semiconductor heater manufacturing. Contact us today to learn more about how we can help you achieve your manufacturing goals.

Our vendors are supplying some of the world’s best known semiconductor companies with dependable and cost-effective heaters and components.

Our semiconductor heater manufacturing facilities are fully equipped with clean rooms, process quality methods, lean manufacturing techniques and expert engineering services.

Our extensive supply chain partnerships and vertical integration has allowed us to become trusted supplier of semiconductor vacuum thermal designs, High Temperature Uniformity Heaters, Aluminum Pedestal Heaters, High Temperature Platen Heaters, stainless steel brazed heaters, aluminum platen heaters, in-chamber platen and other pedestal heaters and platen heaters along with distributing equipment used in manufacturing processes like, transistors, memory devices, leak detection equipment, microprocessors, crystal silicon photovoltaic (PV) cells, and thin film PV cells all require thermal solutions.

Deep in-house engineering and testing capability ensures complete understanding of the application requirements in order to select the best materials and heating methods available. From wattage selection, heat up requirements, materials to patented manufacturing solutions we are well positioned as your long term reliable and dependable supplier of highest quality of high uniformity and other heaters.

From 3D thermal modeling to mass production, Machining Partner has capabilities to design, engineer and build heated aluminum pedestal heaters, stainless steel High Temperature Uniformity heaters, plated heaters under the most stringent specifications.

Engineering and modeling services include Thermal modeling to establish the heater layout to simulate thermal saturation. For high uniformity plate requirements, we offer a hyper thermally conductive layer (PyrAlloy®) that is fused into the plate on top of the heater element. Utilizing wafer analysis and thermal imaging we can develop the most effective design and performance validation.

 Aftermarket, Used and Refurbished Semiconductor Heaters Manufacturers

Applied Materials Heaters, LAM Research Heaters, Applied Materials OEM, Texas Instruments  , MKS Instruments OEM, Novellus SPEED, Novellus, ASM of America and more

AMAT 7800 Series Etchers:

• These etchers use a variety of techniques to remove material from semiconductor wafers, including plasma etching, reactive ion etching, and deep reactive ion etching. The type of etching technique used depends on the specific application, but all of these techniques are used to create patterns that are essential for the formation of transistors and other electronic devices.

AMAT 5500 Series CMP Machines

• These machines use a chemical-mechanical polishing (CMP) process to planarize semiconductor wafers. The CMP process removes material from the wafer surface in a controlled manner, creating a smooth, even surface that is necessary for the deposition of subsequent layers of material.
  AMAT 5500 Series CMP Machines


AMAT 7000 Series Deposition Systems

• These systems use a variety of techniques to deposit thin films of material onto semiconductor wafers, including physical vapor deposition (PVD), chemical vapor deposition (CVD), and atomic layer deposition (ALD). The type of deposition technique used depends on the specific material being deposited, but all of these techniques are used to create thin, conformal films that are essential for the performance of semiconductor devices.
  AMAT 7000 Series Deposition Systems


AMAT 6800 Series ALD Systems

• These systems use atomic layer deposition (ALD) to deposit thin films of material onto semiconductor wafers. ALD is a process that allows for the deposition of very thin, conformal films that are essential for advanced semiconductor devices. ALD is a relatively new process, but it is quickly becoming the preferred method for depositing thin films in a variety of applications.
  AMAT 6800 Series ALD Systems


AMAT 8600 Series Ion Implanters

• These implanters use a high-energy beam of ions to introduce dopant atoms into semiconductor wafers. Dopant atoms are used to control the electrical properties of the semiconductor, such as its conductivity. Ion implantation is a critical process in the manufacturing of semiconductor devices, and AMAT’s 8600 Series implanters are some of the most advanced in the world.
  AMAT 8600 Series Ion Implanters

These are just a few of the most common semiconductor part numbers from Applied Materials. The company offers a wide range of products for all stages of the semiconductor manufacturing process, and their part numbers can be used to identify specific pieces of equipment.

Lam Research Corporation is an American supplier of wafer-fabrication equipment and related services to the semiconductor industry. The company was founded in 1980 and is headquartered in Fremont, California. Lam Research is a global company with operations in the United States, Europe, and Asia.

Lam Research is a leading supplier of semiconductor manufacturing equipment and services. The company’s products and services are essential for the production of the microchips that power our modern world. Lam Research is a profitable company with a strong financial performance and a commitment to innovation.

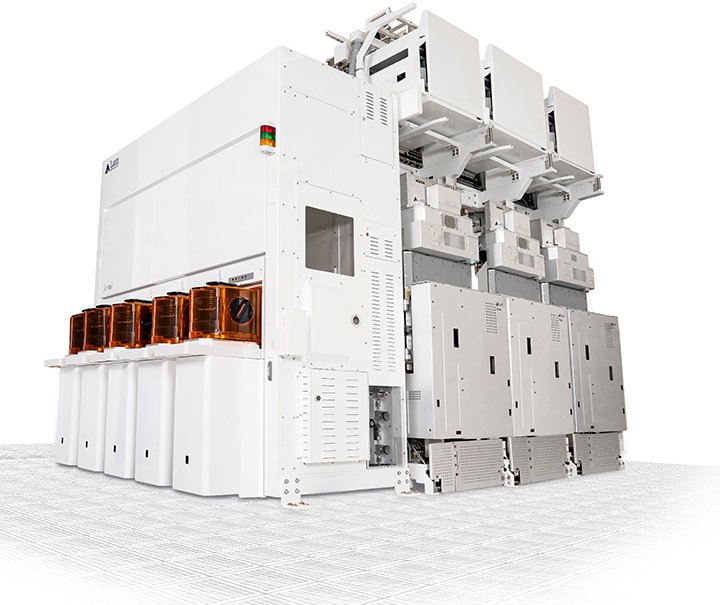

EUV Scanners: LAM Research’s EUV scanners are the most advanced tools in the semiconductor manufacturing process. They use extreme ultraviolet (EUV) light to pattern features on semiconductor wafers with unprecedented accuracy and precision. The EUV scanners are able to manufacture subcomponents with sizes as small as 10 nanometers, which is essential for the production of the next generation of semiconductor devices.

Dry Etchers: LAM Research’s dry etchers are used to remove material from semiconductor wafers. They use a variety of techniques, including plasma etching and reactive ion etching, to create patterns that are essential for the formation of transistors and other electronic devices. The dry etchers are able to manufacture subcomponents with complex geometries and high aspect ratios.

CMP Systems: LAM Research’s CMP systems are used to planarize semiconductor wafers. They use a chemical-mechanical polishing (CMP) process to remove material from the wafer surface in a controlled manner, creating a smooth, even surface that is necessary for the deposition of subsequent layers of material. The CMP systems are able to manufacture subcomponents with high surface smoothness and flatness.

Deposition Systems: LAM Research’s deposition systems are used to deposit thin films of material onto semiconductor wafers. They use a variety of techniques, including physical vapor deposition (PVD), chemical vapor deposition (CVD), and atomic layer deposition (ALD), to create thin, conformal films that are essential for the performance of semiconductor devices. The deposition systems are able to manufacture subcomponents with high film uniformity and thickness control.
